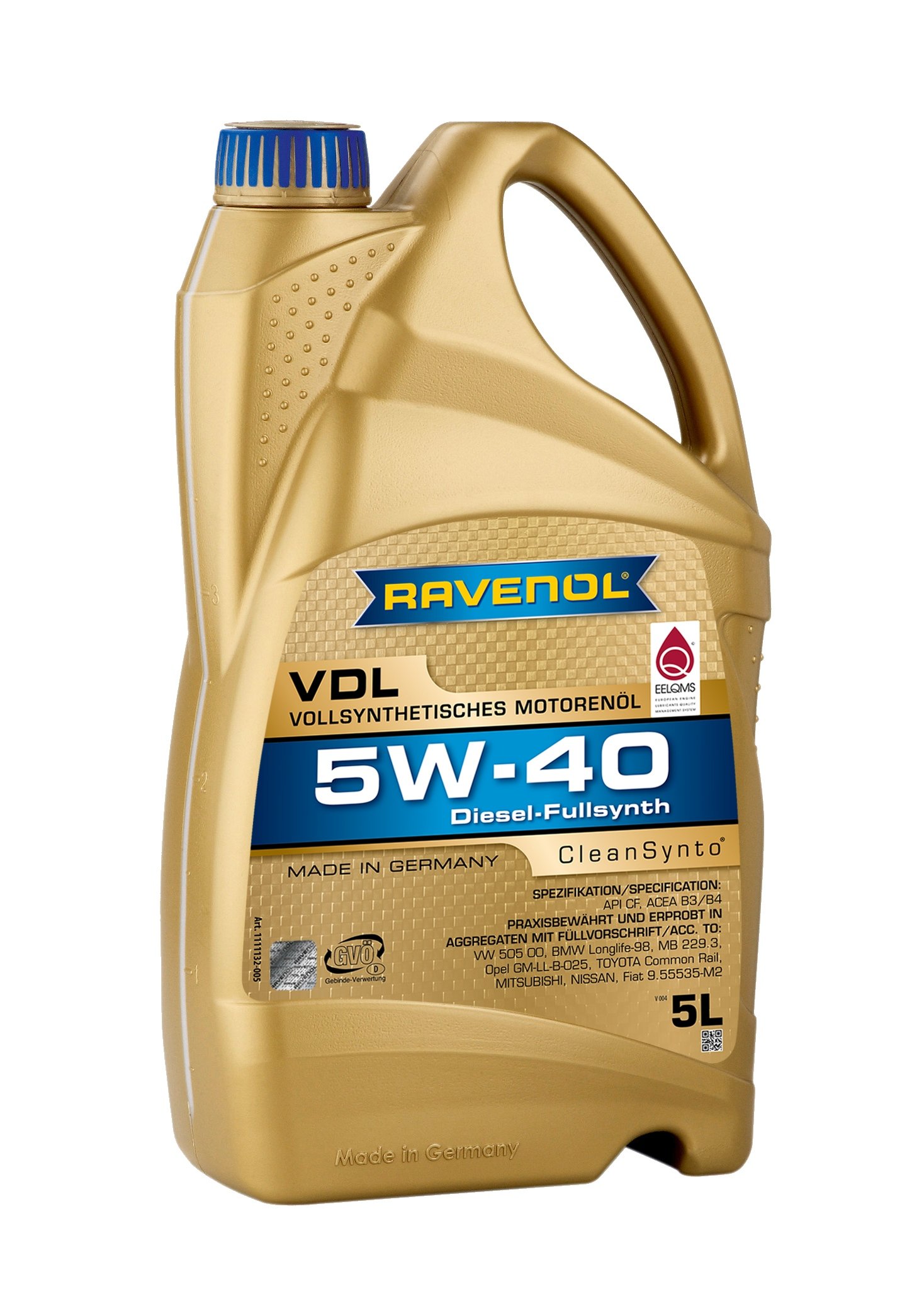

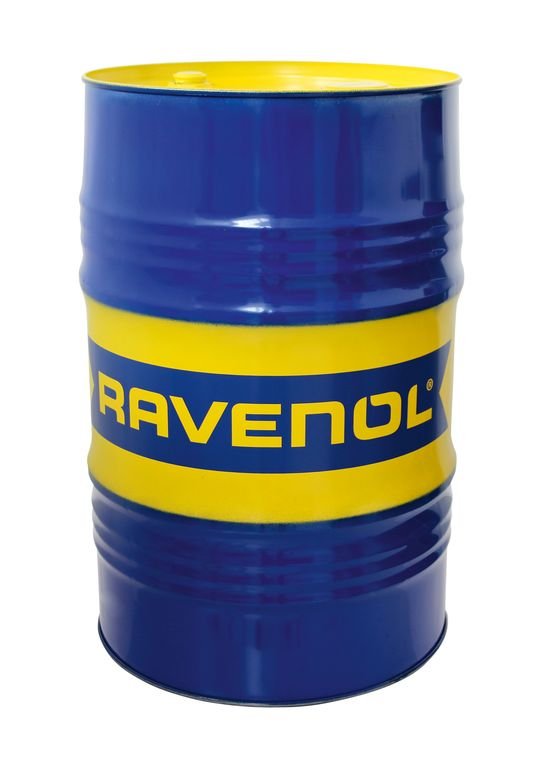

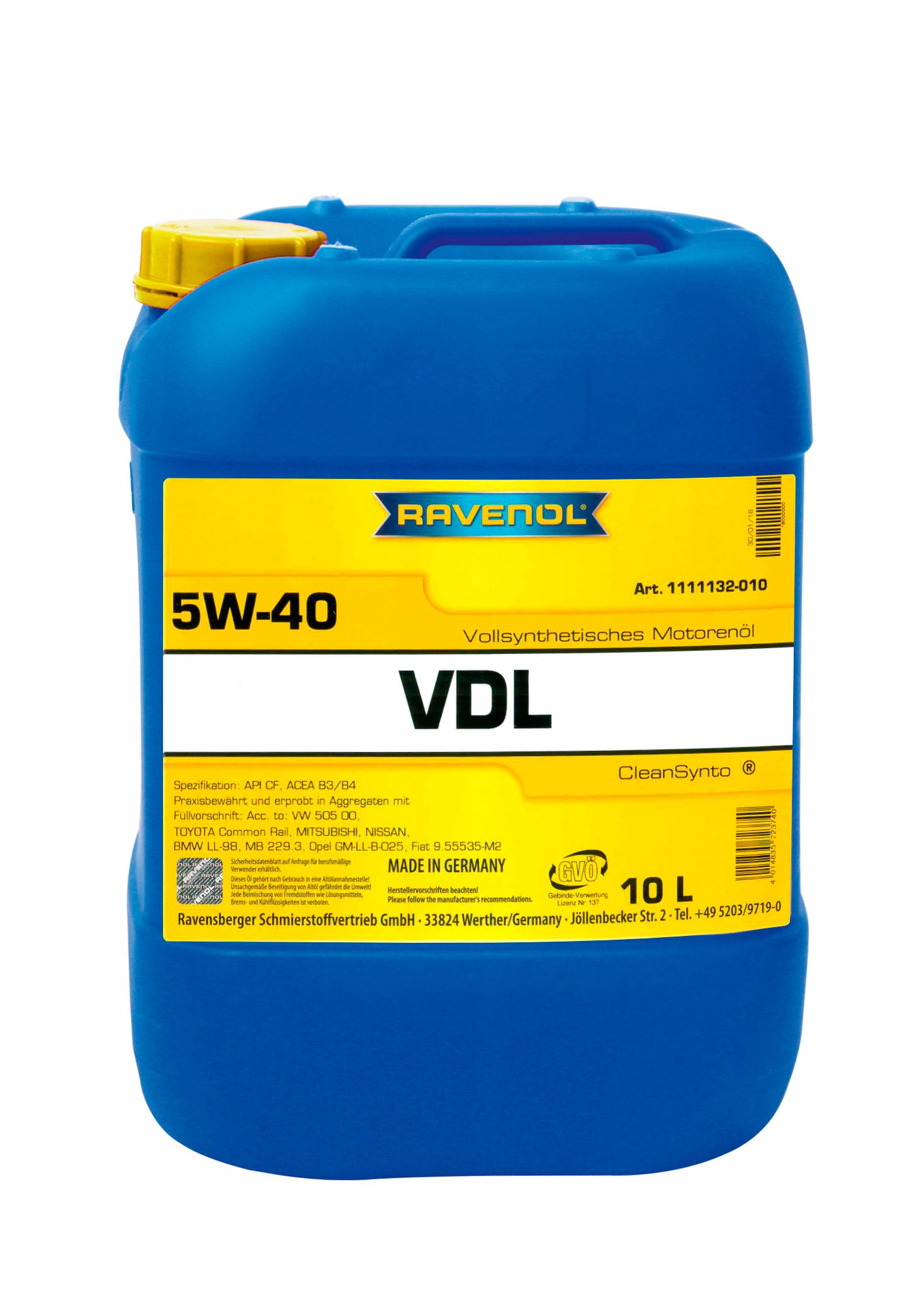

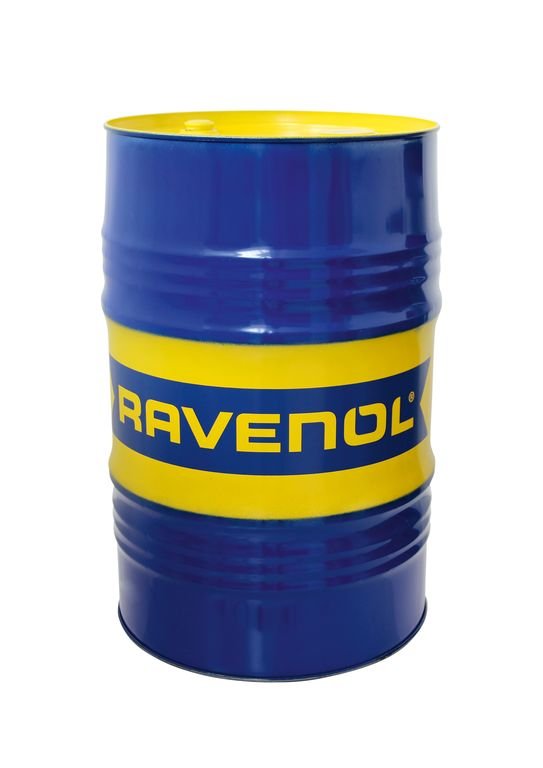

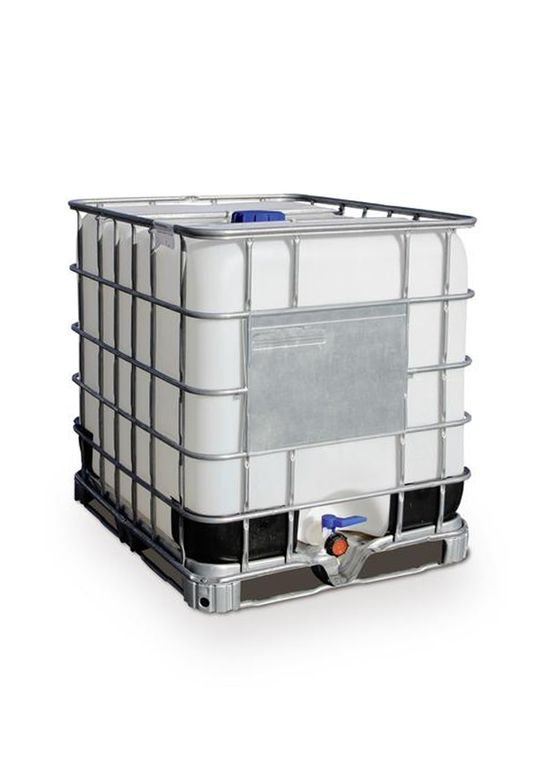

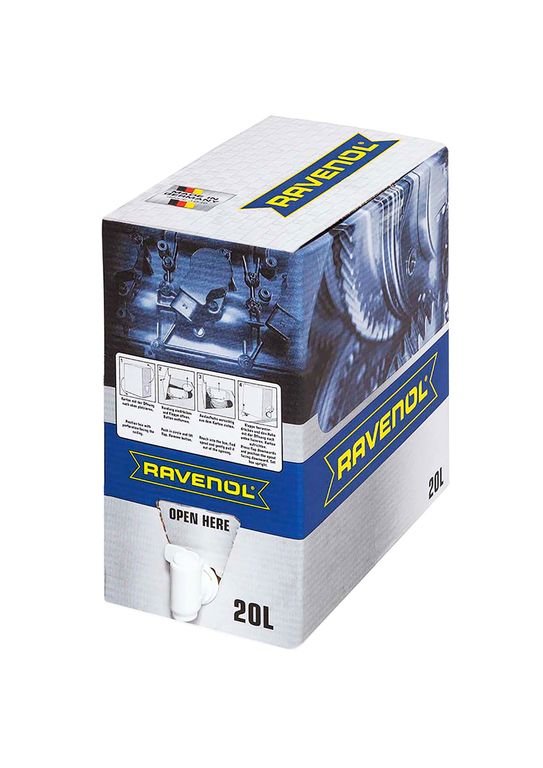

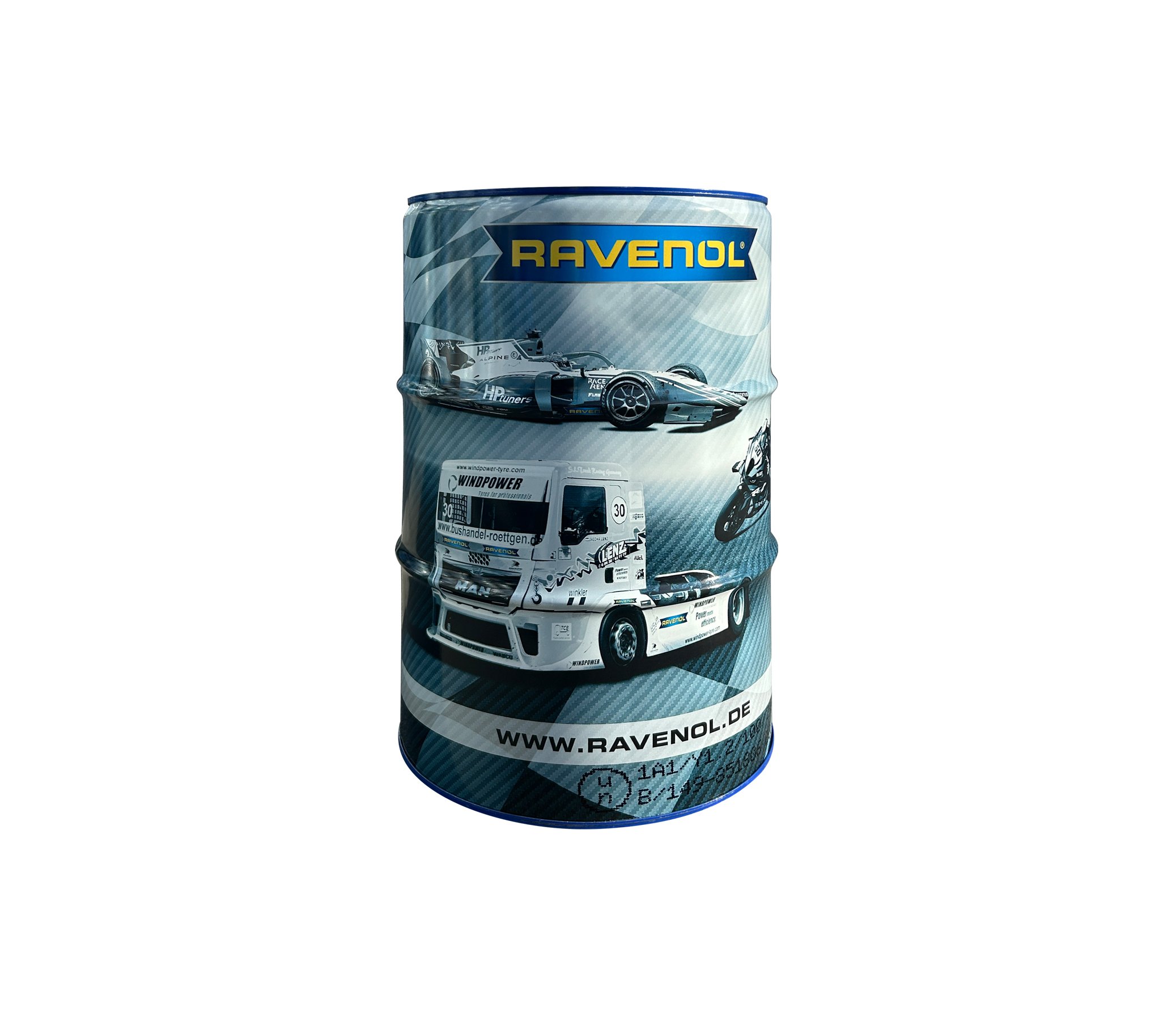

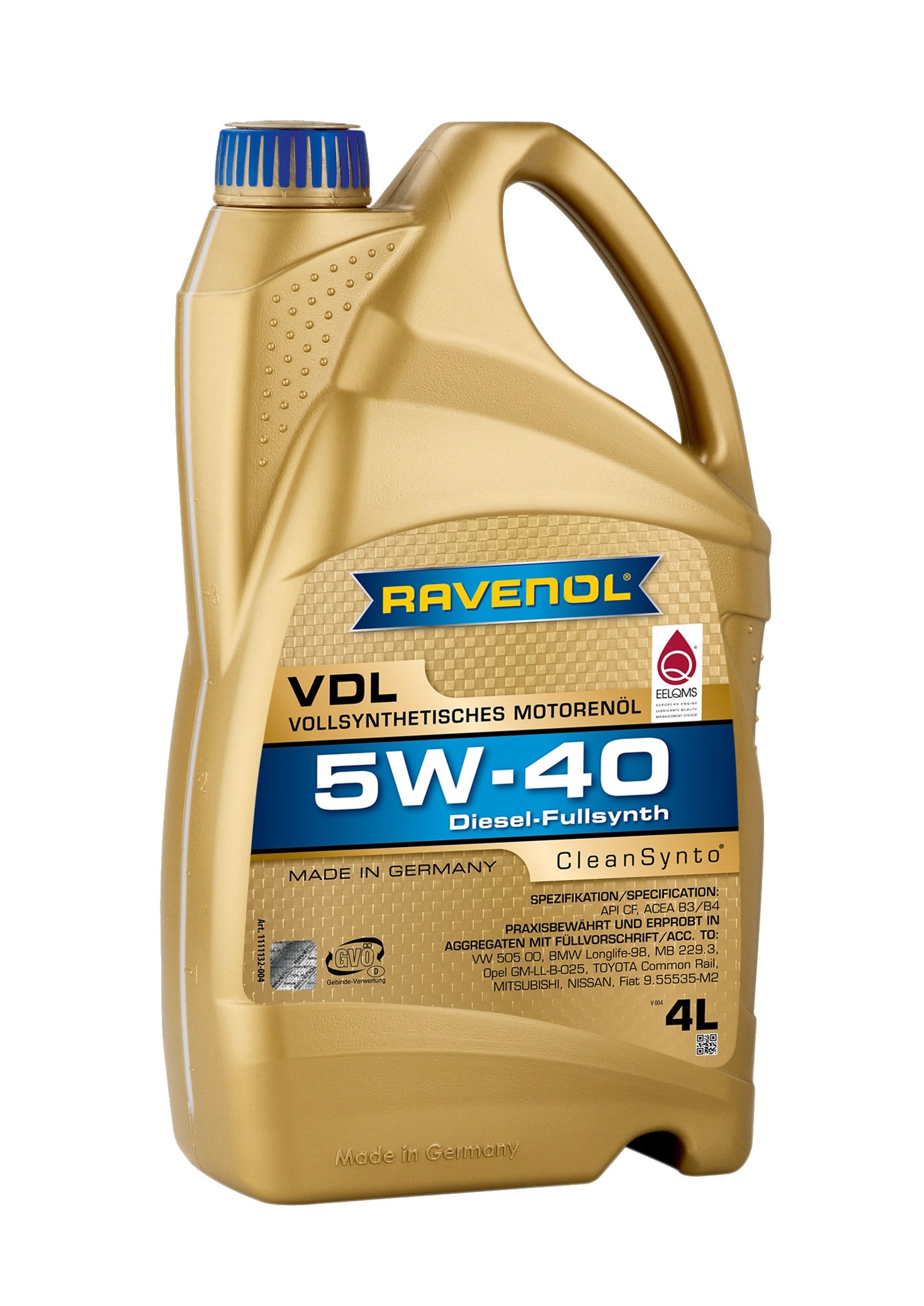

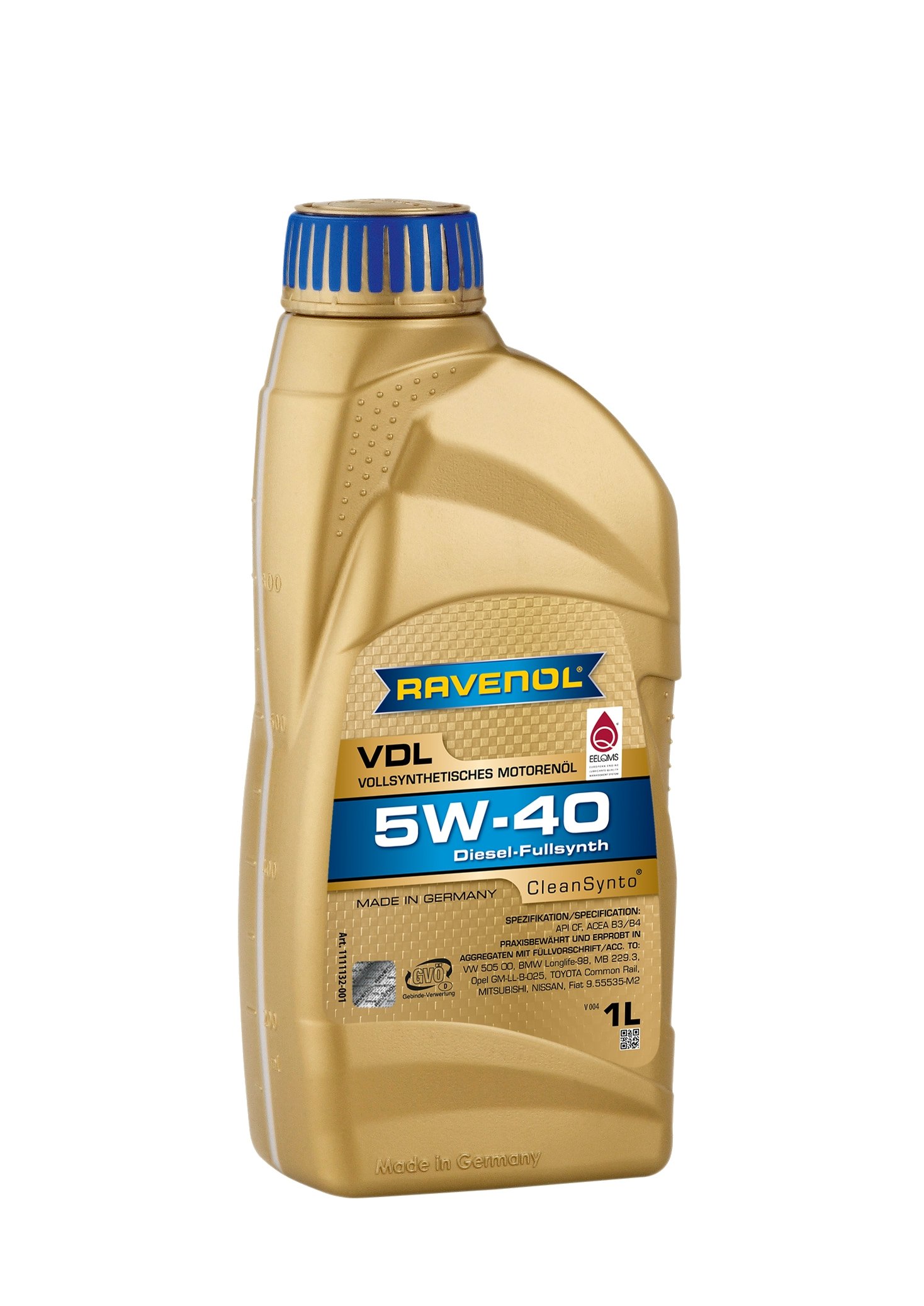

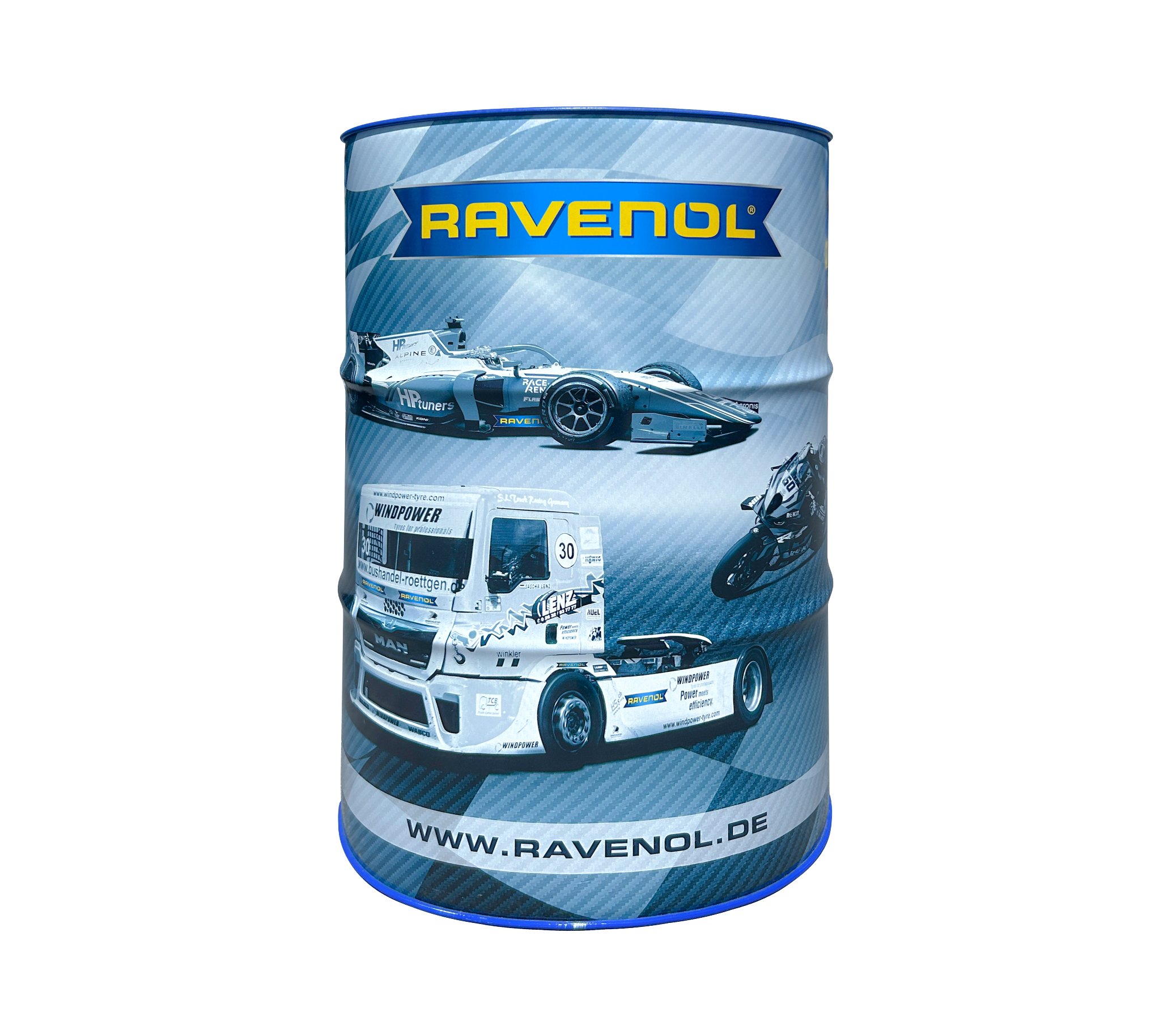

RAVENOL VDL SAE 5W-40

Category: Passenger car motor oil
Item number: 1111132
Viscosity: 5W-40
Specification: ACEA B3/B4, API CF
Oil type: Full synthetic
Application: Passenger car
Technology: Clean Synto®

RAVENOL VDL SAE 5W-40 is a full synthetic, low-friction engine oil with CleanSynto® Technology for passenger car diesel engines with or without turbo-charging and direct injection.

RAVENOL VDL SAE 5W-40 achieves a high viscosity index through its formulation with special base oils. The excellent cold start behaviour provides an optimum lubricating safety during the cold run phase.

Because of a considerable fuel saving RAVENOL VDL SAE 5W-40 contributes to protect the environment by reducing the emissions.

RAVENOL VDL SAE 5W-40 minimizes friction, wear and fuel consumption with excellent cold start characteristics.

Suitable for extended oil change intervals where recommended by manufacturer.

Application Note

RAVENOL VDL SAE 5W-40 is ideally suited for energy-saving year-round use in passenger car diesel engines with turbocharger and catalytic converter operation.

RAVENOL VDL SAE 5W-40 guarantees operational safety in all driving conditions, such as extreme stop-and-go traffic as well as high-speed highway driving.

Characteristics

  • High abrasion resistance.
  • Fuel economy by low friction property.
  • Excellent detergent and dispersant property.
  • Prevention of black sludge formation.
  • Extended endurance because of oxidation stability.
  • Excellent cold start characteristics.
  • Excellent viscosity-temperature- characteristics.
  • Low evaporation tendency.
  • Suitable for catalysts.

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³844,0EN ISO 12185
ColourgelbbraunVISUELL
Viscosity at 100 °Cmm²/s14,4DIN 51562-1
Viscosity at 40 °Cmm²/s87,7DIN 51562-1
Viscosity Index VI170DIN ISO 2909
HTHS Viscosity at 150 °C mPa*s3,8ASTM D5481
CCS Viscosity at -30 °CmPa*s4220ASTM D5293
Low Temp. Pumping viscosity (MRV) at -35 °CmPa*s18.600ASTM D4684
Pourpoint°C-51DIN ISO 3016
Noack Volatility% M/M6,9ASTM D5800
Flashpoint°C240DIN EN ISO 2592
tbnmg KOH/g10,0ASTM D2896
Sulphated Ash%wt.1,39DIN 51575

All indicated data are approximate values and are subject to the commercial fluctuations.
