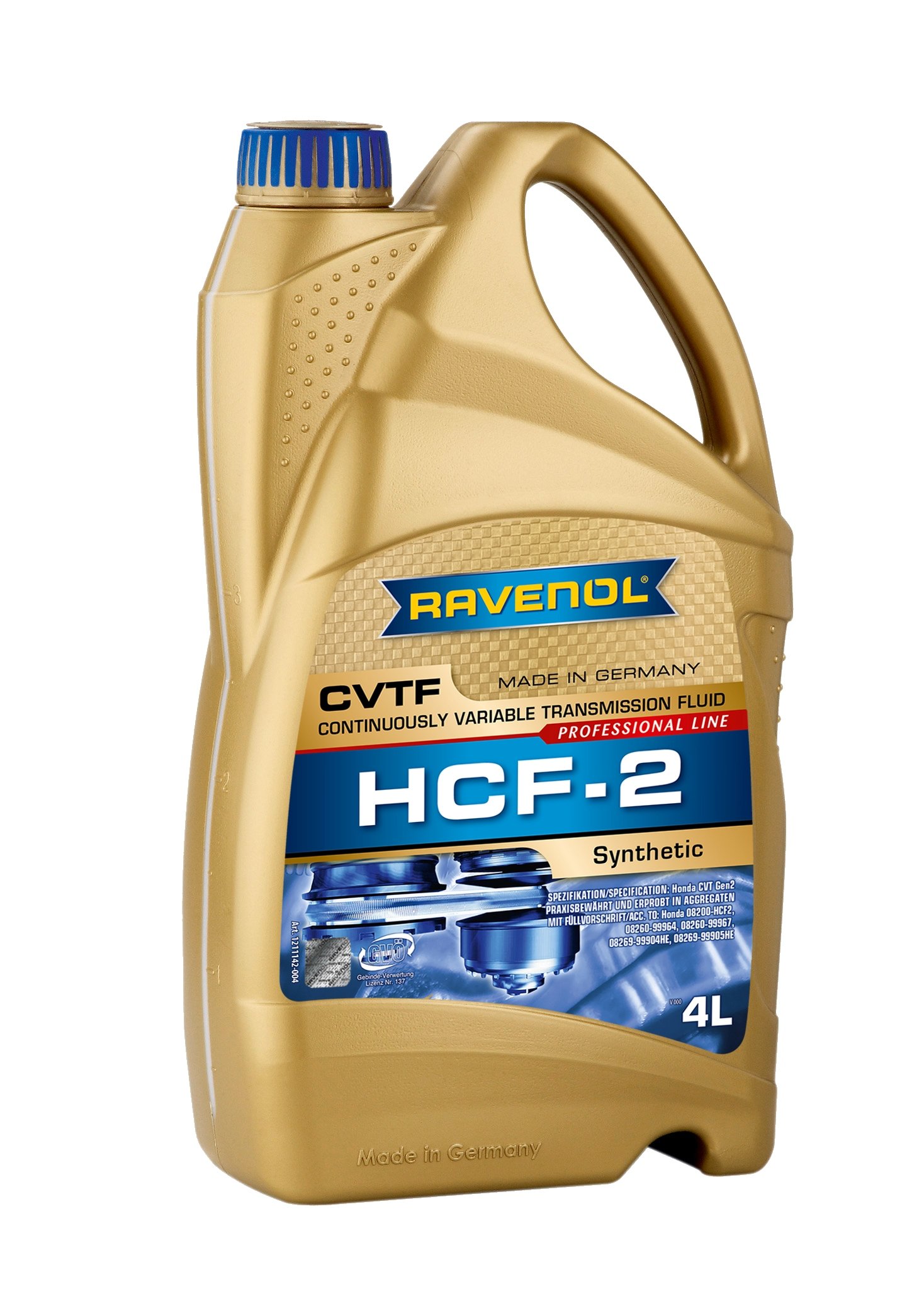

RAVENOL CVT HCF-2 Fluid is a synthetic CVT (Continuously Variable Transmission) fluid designed specifically for second-generation CVT transmissions.
RAVENOL CVT HCF-2 Fluid is based on high quality base oils with Polyalphaolefin (PAO) and a special additive and inhibition, which ensure proper functioning of the gearbox.
RAVENOL CVT HCF-2 Fluid is a synthetic CVT fluid with low viscosity for Honda CVT automatic transmissions.
RAVENOL CVT HCF-2 Fluid guarantees a high viscosity index, excellent protection against high pressure, friction and wear and optimal power transmission.
Application Note
RAVENOL CVT HCF-2 Fluid is designed for use in Steel Belt Continuously Variable Transmission (CVT) transmissions, especially for Honda CVT Gen2 transmissions.
Use RAVENOL CVT HCF-2 Fluid only in vehicles with a gearbox oil filler cap marked with a Honda HCF-2 sticker, or for which the user manual specifically states the use of this gear fluid (if applicable, refer to OEM part number 08200-HCF2).
Characteristics
- Very good lubricity even at low temperatures in winter
- Very high, stable viscosity index
- Very good oxidation stability
- Excellent protection against high pressure, friction and wear, corrosion and foaming
- Neutral behavior towards sealing materials
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Colour | gelbbraun | VISUELL | |
| Seq. I at 24 °C | ml/ml | 0/0 | ASTM D892 |
| Seq. II at 93,5 °C | ml/ml | 0/0 | ASTM D892 |
| Seq. III at 24 °C after 93,5 °C | ml/ml | 0/0 | ASTM D892 |
| Viscosity at 100 °C | mm²/s | 6,95 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 24,95 | DIN 51562-1 |
| Viscosity Index VI | 265 | DIN ISO 2909 | |
| VKA Four Ball Test (Wear) | mm | 0,5 | DIN 51350-3 |
| VKA Four Ball Test (EP Extreme Pressure) | N | 1800 / 2000 | DIN 51350-3 |
| Brookfield Viscosity at -40 °C | mPa*s | 2.520 | ASTM D2983 |
| Copper Strip Test at 150 °C | 1b | ASTM D130 | |
| Density at 20 °C | kg/m³ | 853,0 | EN ISO 12185 |
| Flashpoint (CC) | °C | 180 | DIN EN ISO 2592 |
| Pourpoint | °C | -54 | DIN ISO 3016 |
All indicated data are approximate values and are subject to the commercial fluctuations.
RAVENOL special transmission fluids are special developments for special gears and cannot be selected on the basis of technical parameters (viscosity, etc.). Therefore the decision was made not to give technical data. Please note: RAVENOL special transmission fluid is exclusively to apply under the original number, as indicated in the product information. If you are unsure about the right transmission fluid, ask your workshop or dealership for advice on the transmission type and OEM original number or ask our experts, making sure to state the VIN code (vehicle identification number) of your vehicle. Misapplication of RAVENOL special transmission fluid can lead to malfunction of the transmission shifting problems, increased fuel consumption, unwanted slip behavior, etc. and cause the failure of the transmission. Ravensberger Schmierstoffvertrieb GmbH is not liable for transmission failures in case of wrong selection of RAVENOL special transmission fluid.
