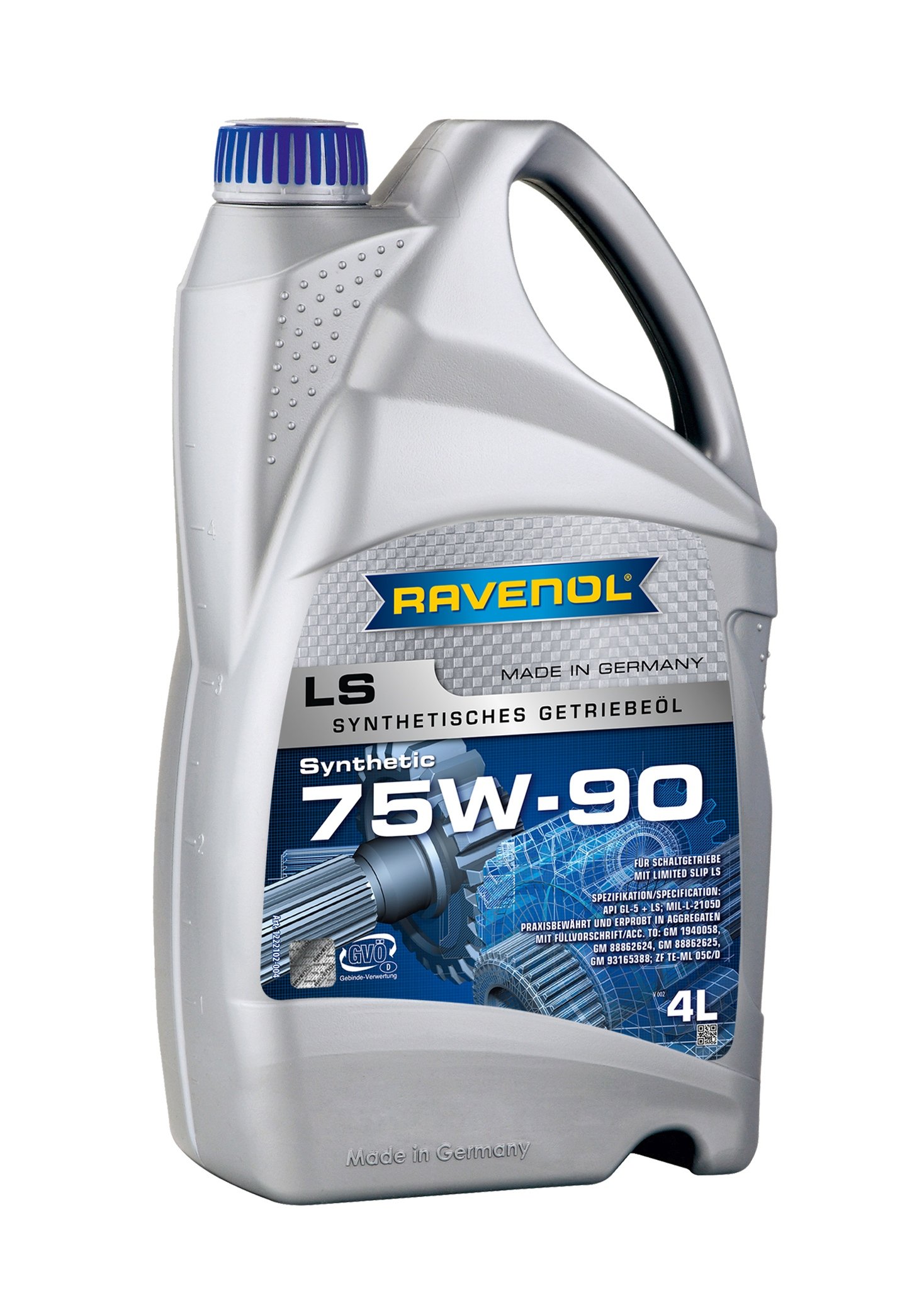

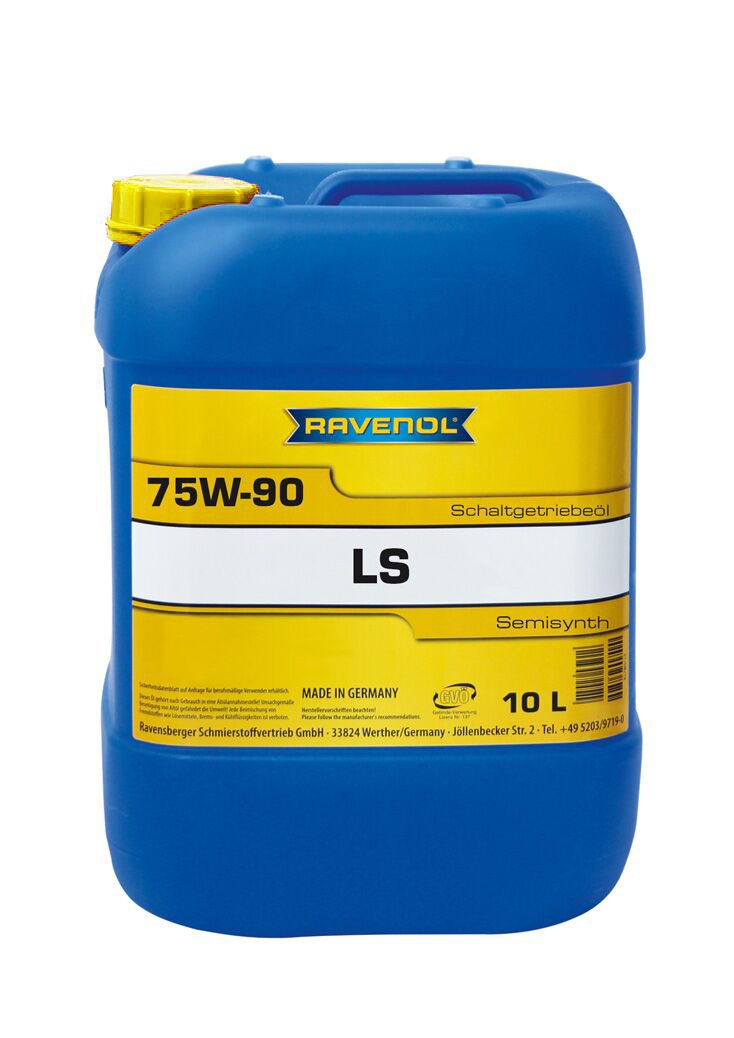

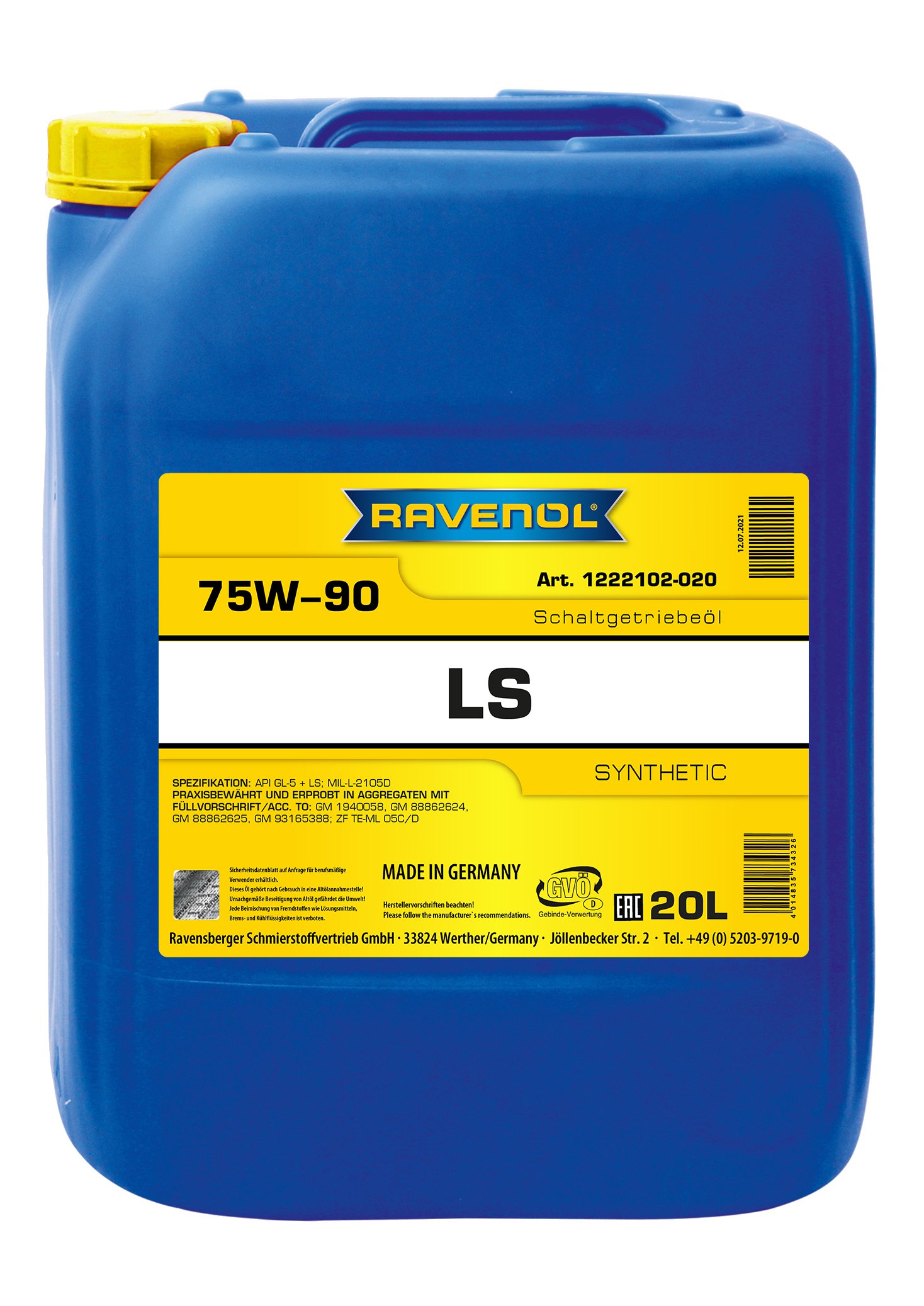

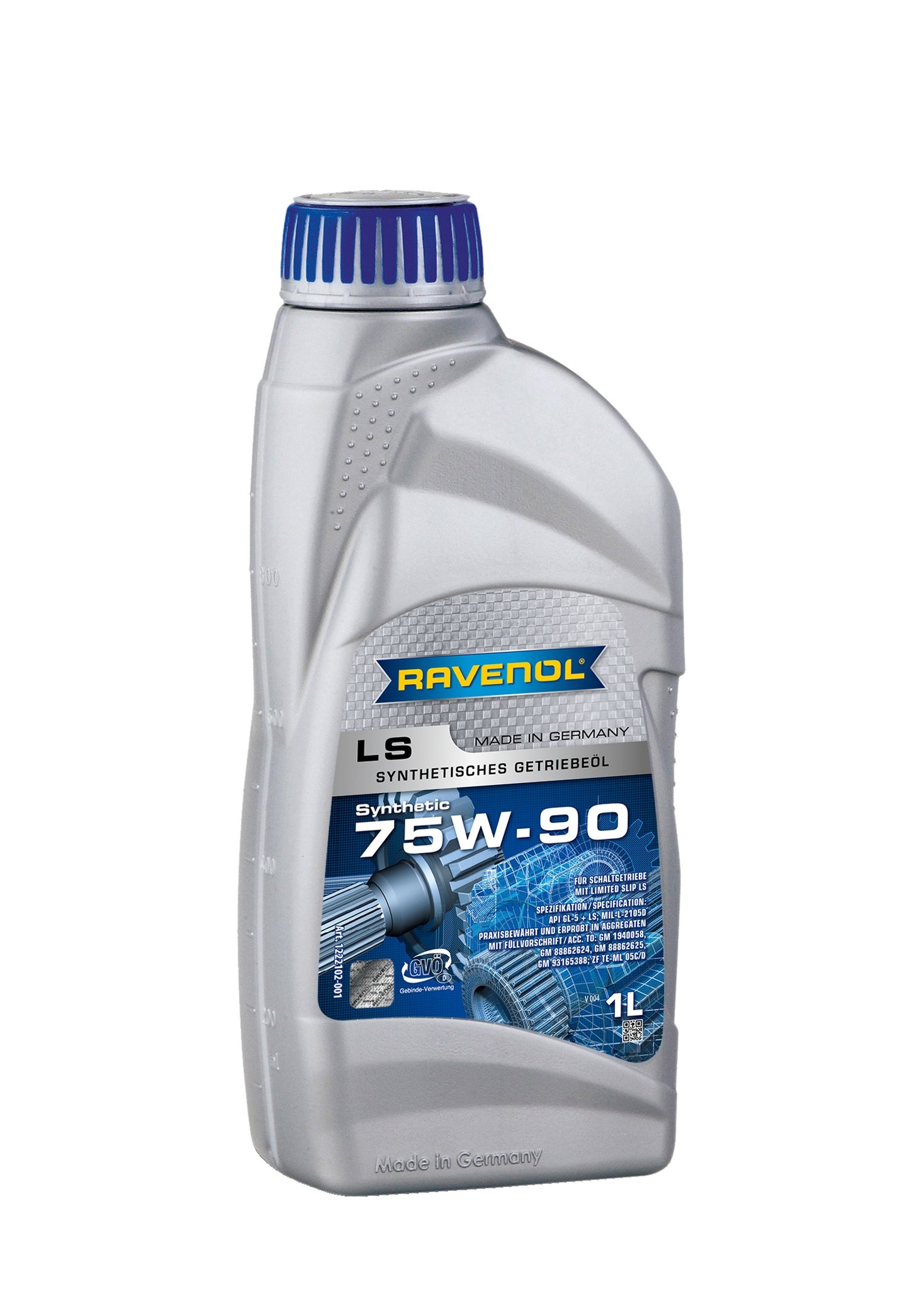

RAVENOL Getriebeoel LS SAE 75W-90

Category: Gear oil for manual transmissions and drive axis
Item number: 1222102
Viscosity: 75W-90
Specification: API GL-5 + LS, MIL-L-2105 D
Oil type: Synthetic
Application: Passenger car, Truck

RAVENOL Getriebeoel LS SAE 75W-90 is a synthetic lubricant for mechanical transmissions.

RAVENOL Getriebeoel LS SAE 75W-90 is designed based on high-quality solvent refined and synthetic base oils with special additive treatment and inhibition for higher stress on manual transmission oils and ensuring trouble-free transmission function.

Application Note

RAVENOL Getriebeoel LS SAE 75W-90 was developed specifically for use in differential gear units with limited slip. It also ensures trouble-free lubrication in self-locking, hypoid geared transmissions.

Characteristics

  • excellent oxidation stability
  • excellent protection against rust and corrosion
  • prevents foaming
  • outstanding extreme pressure properties
  • excellent limited slip properties
  • fuel savings

Technical Product Data

PropertyUnitDataAudit
Density at 20 °Ckg/m³839,0EN ISO 12185
ColourgelbVISUELL
Viscosity at 100 °Cmm²/s17,1DIN 51562-1
Viscosity at 40 °Cmm²/s102,1DIN 51562-1
Viscosity Index VI182DIN ISO 2909
Brookfield Viscosity at -40 °CmPa*s84.300ASTM D2983
Pourpoint°C-42DIN ISO 3016
Flashpoint°C210DIN EN ISO 2592
Copper Strip Test at 121 °C1bASTM D130

All indicated data are approximate values and are subject to the commercial fluctuations.
