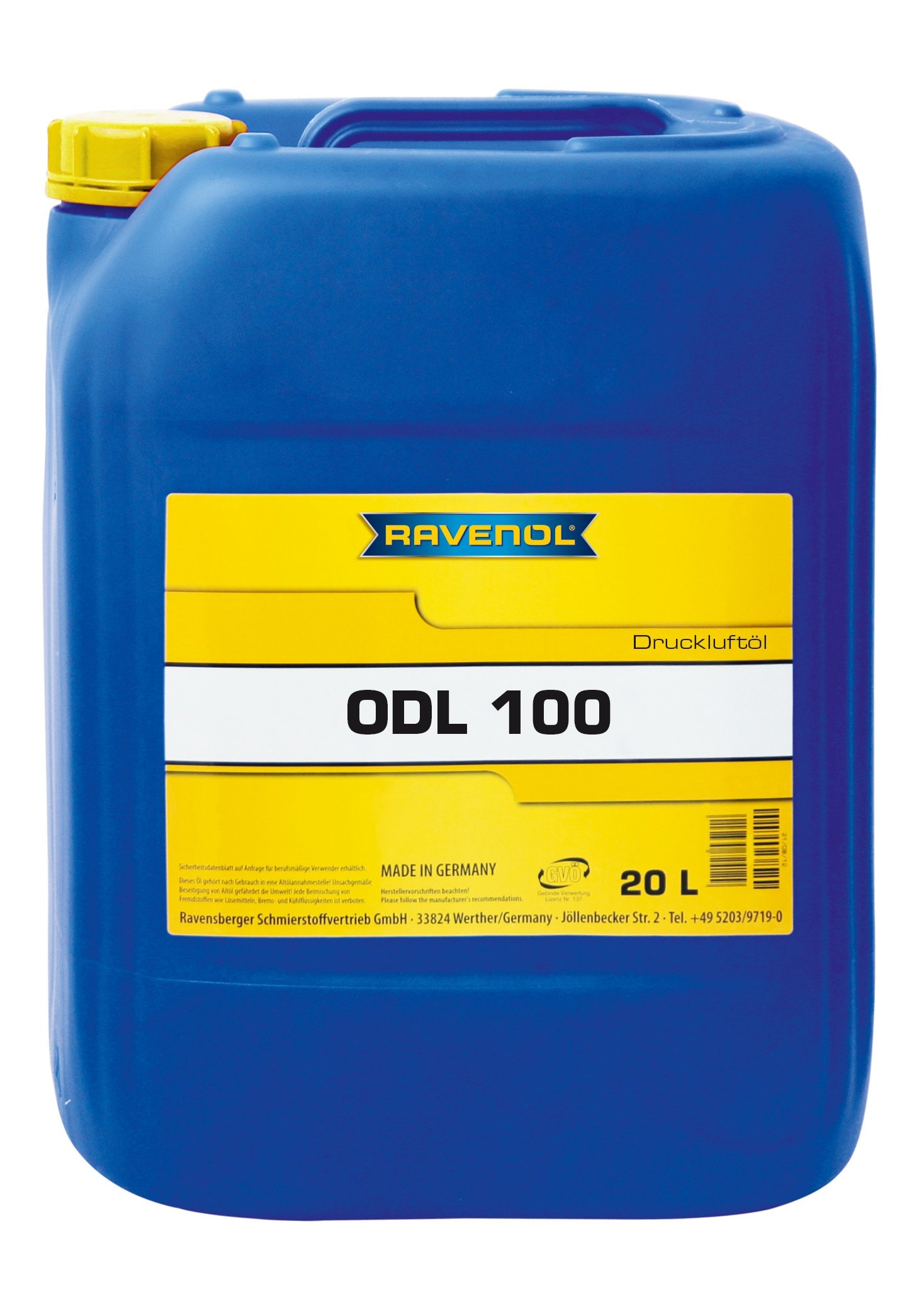

RAVENOL ODL 100 Druckluftoel is a special-compressed-air-oil for pneumatic tools of all systems.
RAVENOL ODL 100 Druckluftoel bonds condensed water, has an excellent corrosion protection, wear protection and an extraordinary pressure absorption capacity, a good adhesive power and high aging resistance. Easily conveying- and spray ability, economy consumption. No deposits caused by cleaning effects. Full power of impact.
Application Note
RAVENOL ODL 100 Druckluftoel is especially suitable for pneumatic tools with sound-absorbing-case, for lubrication of rock drills, road breaker, chipping hammer and spade hammer, ram machines and other pneumatic aggregates. Application by pre-switch-lubricator according to working instructions or usable directly in the air pipe.
Please follow the manufacturer´s instructions.
Characteristics
- a high performance level
- a very good viscosity temperature behaviour
- a good adherence
- a high aging resistance
- a reliable wear protection
- an excellent corrosion protection
- neutrality of sealing materials
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 875,0 | EN ISO 12185 |
| Colour | gelbbraun | VISUELL | |
| Viscosity at 100 °C | mm²/s | 11,7 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 100,0 | DIN 51562-1 |
| Viscosity Index VI | 105 | DIN ISO 2909 | |
| Pourpoint | °C | -24 | DIN ISO 3016 |
| Flashpoint | °C | 264 | DIN EN ISO 2592 |
| FZG-Test A/8.3/90 Damage loading step | %wt. | 12 | DIN 51354/2 |
All indicated data are approximate values and are subject to the commercial fluctuations.
