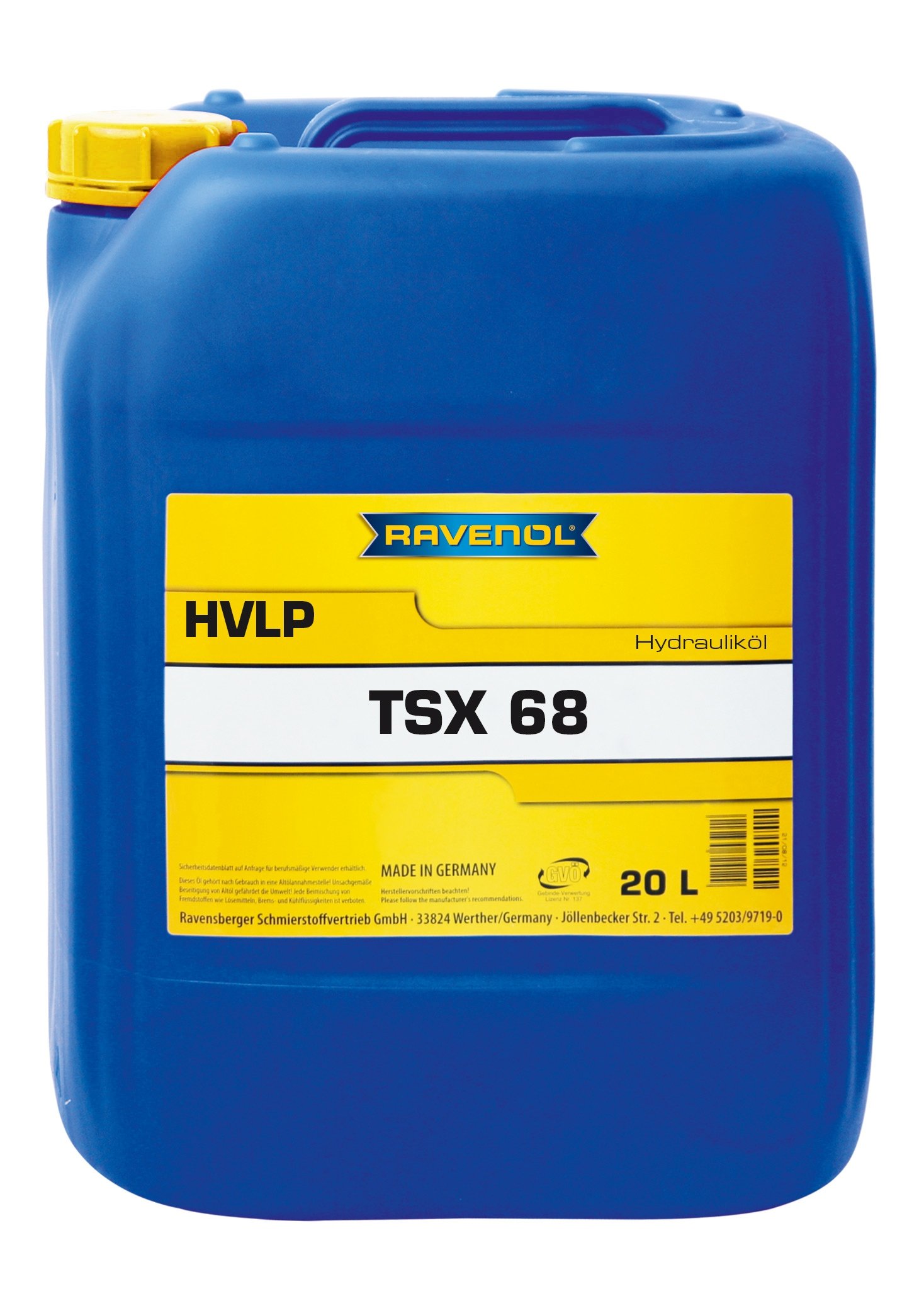

RAVENOL Hydraulikoel TSX 68 (HVLP) is high quality multi-grade hydraulic oil type HVLP based on special selected solvent refined basic oils. It is characterised by a high stable viscosity index and a solid corrosion protection. Efficient additives offer an excellent corrosion protection even under extreme loads. The behaviour of sealing materials is neutral.
Application Note
RAVENOL Hydraulikoel TSX 68 (HVLP) is suitable for heavy loaded hydraulic machines of the industry, for earth moving machines and agricultural machines. Preferred use in case of great variations of the operation temperature. No use in case of silver and/or silver-coated components in the hydraulic machines.
Characteristics
- A high and stable viscosity index
- An excellent corrosion protection
- An excellent protection against wear
- A very good air and water separation behaviour to prevent foam formation
- Neutral behaviour towards sealing of plastics
- A very low pour point
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 862,0 | EN ISO 12185 |
| Colour | gelbbraun | VISUELL | |
| Viscosity at 100 °C | mm²/s | 11,4 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 68,5 | DIN 51562-1 |
| Viscosity Index VI | 161 | DIN ISO 2909 | |
| Pourpoint | °C | -35 | DIN ISO 3016 |
| Flashpoint | °C | 242 | DIN EN ISO 2592 |
| tbn | mg KOH/g | 0,4 | ASTM D2896 |
| Sulphated Ash | %wt. | 0,06 | DIN 51575 |
All indicated data are approximate values and are subject to the commercial fluctuations.
