Category:
Marine hydraulic oil
Item number:
1234100
Oil type:
Mineral
Application:
Marine

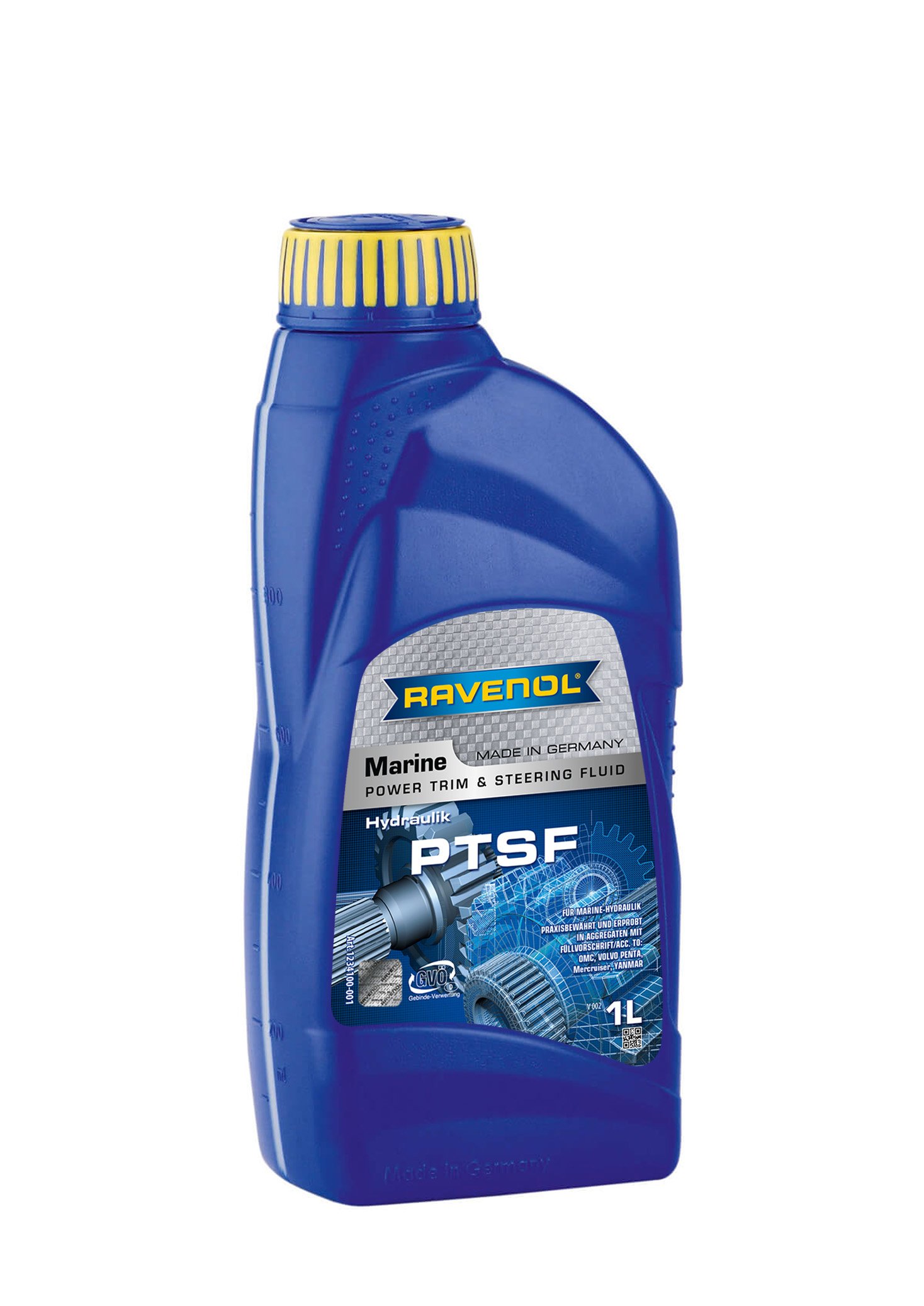

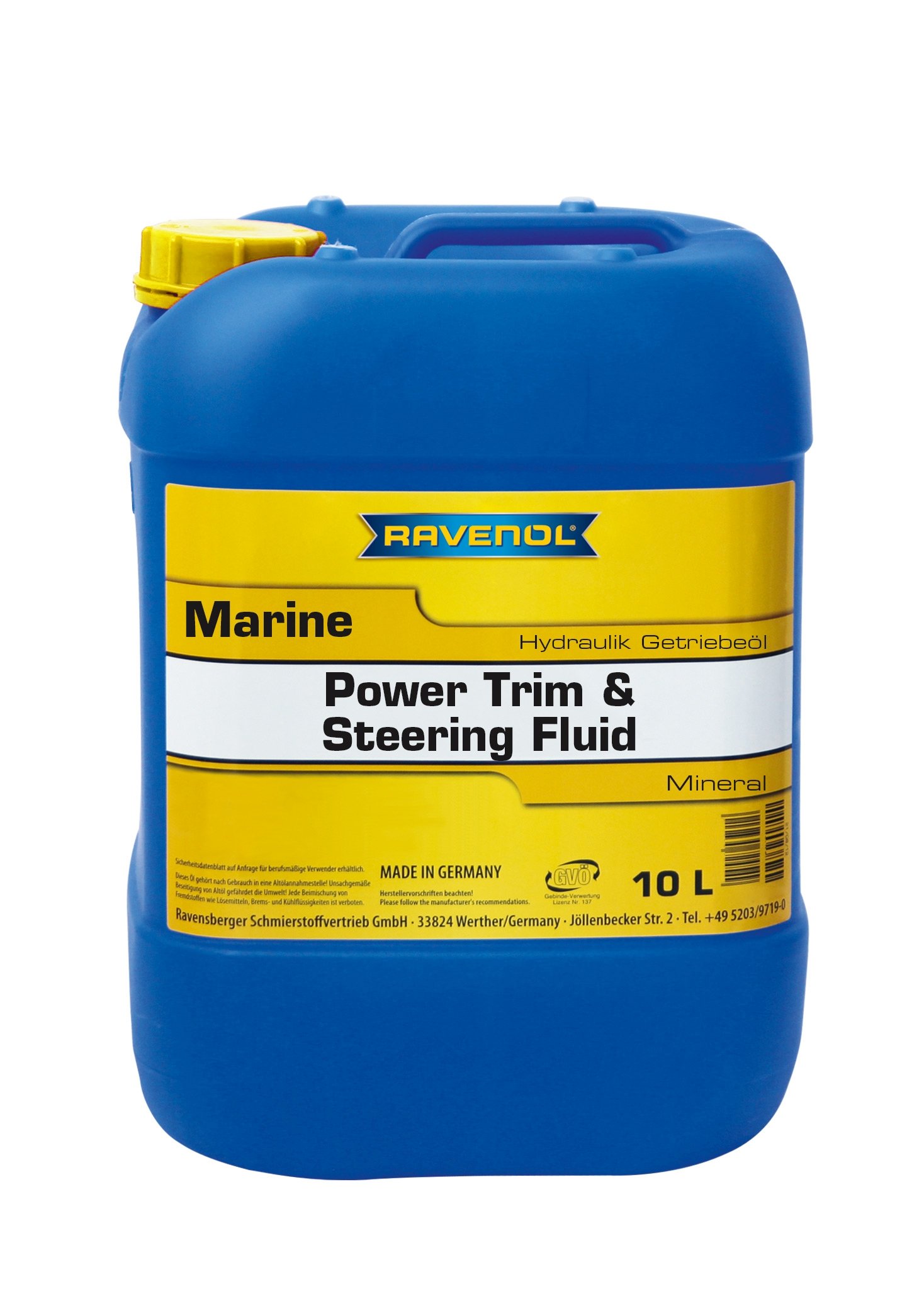

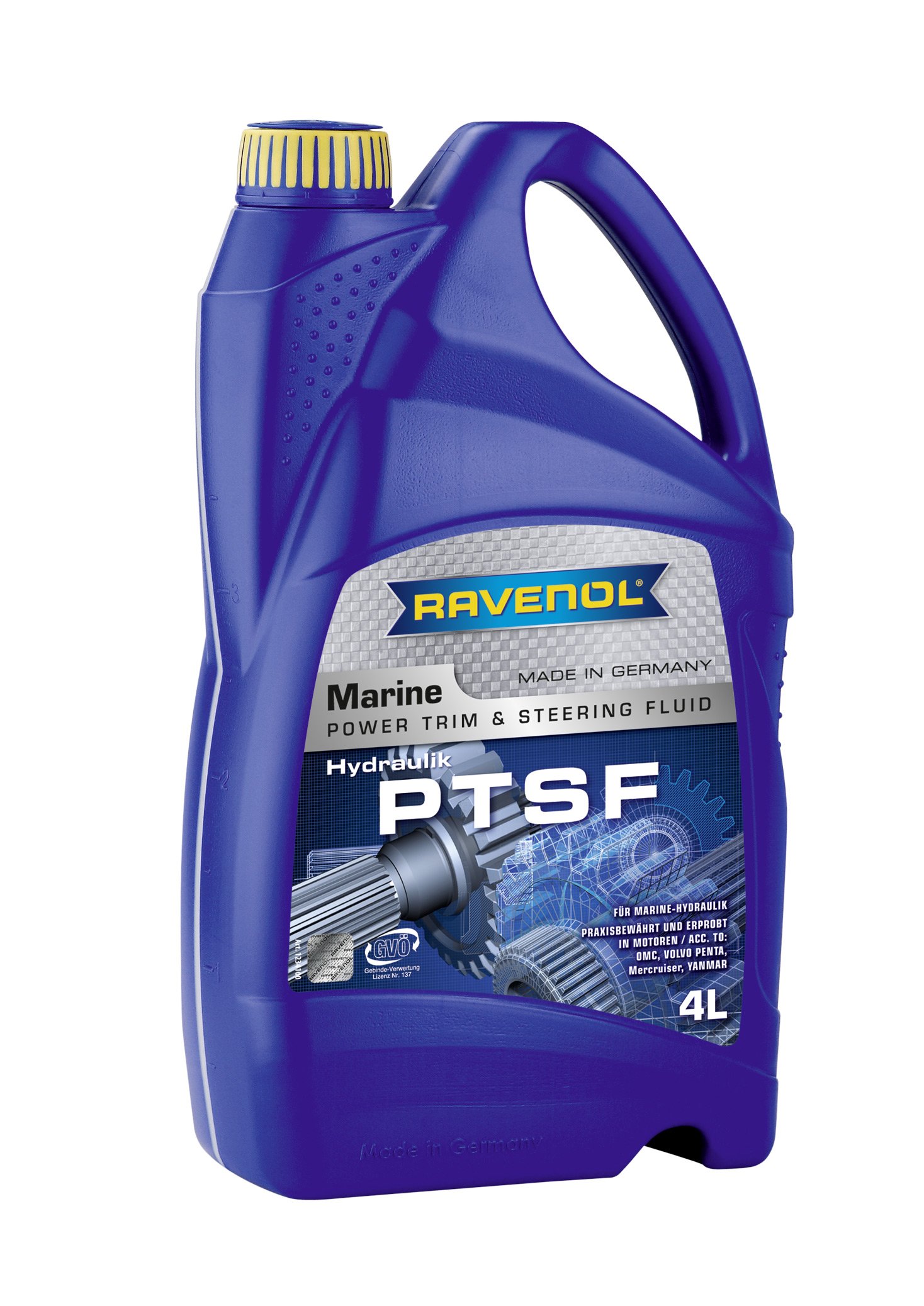

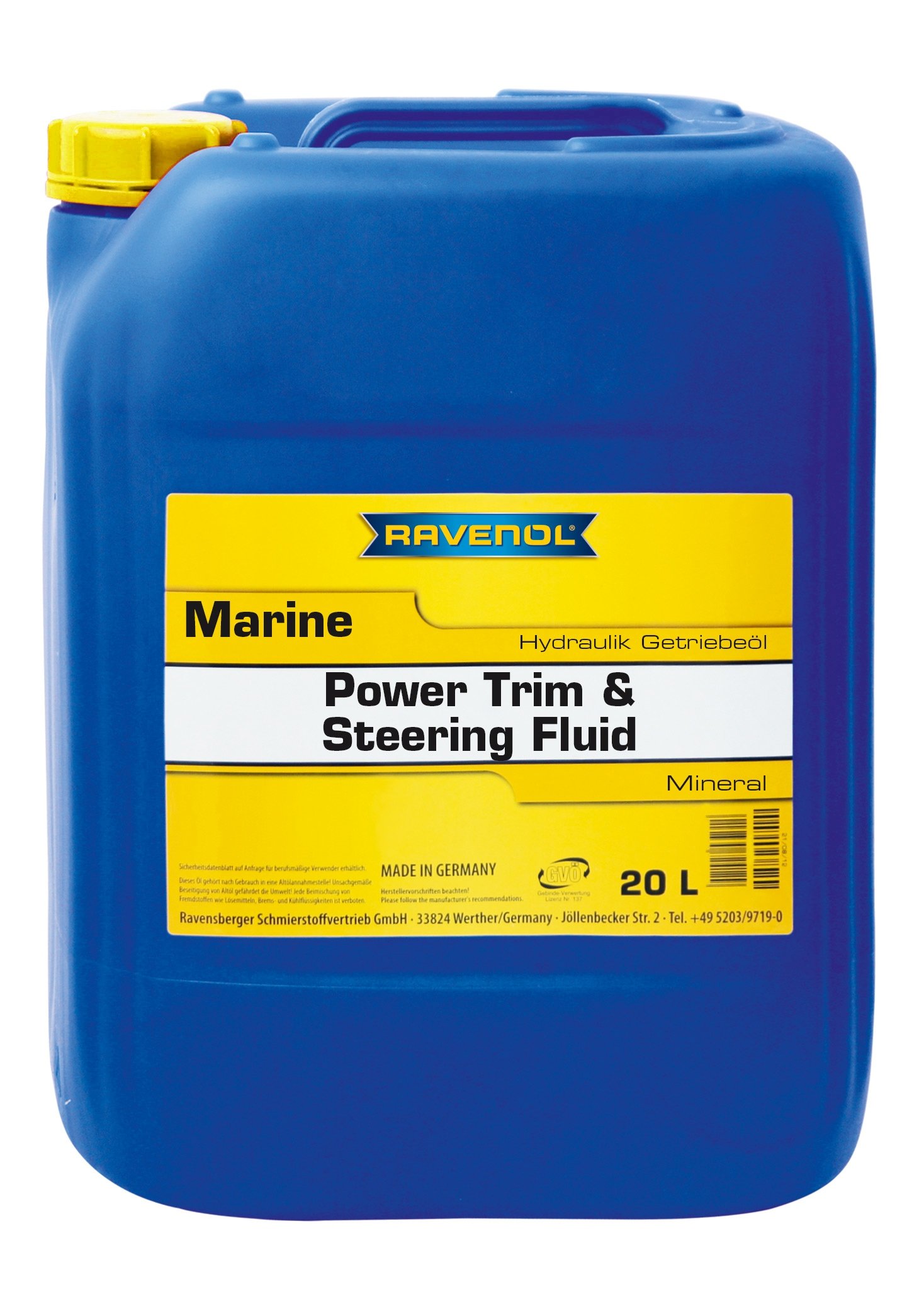

RAVENOL MARINE Power Trim & Steering Fluid is a high quality hydraulic oil based on specially selected solvent refined base oils.
It is particularly characterized by a high and stable viscosity index and reliable corrosion protection. Effective additives provide an excellent wear protection even under extreme loads. The behaviour towards sealing materials is neutral.
Application Note
RAVENOL MARINE Power Trim & Steering Fluid is an excellent product for lubrication of hydraulics in the marine area.
May not be used if in the hydraulic systems are silver and / or silver-plated construction and operating elements present.
Characteristics
- A high and stable viscosity index
- Excellent protection against wear
- Widest possible protection against corrosion
- A very good air and water separation to prevent foaming
- A neutral attitude towards plastic and seals
- A very low pour point
Technical Product Data
| Property | Unit | Data | Audit |
|---|---|---|---|
| Density at 20 °C | kg/m³ | 845,0 | EN ISO 12185 |
| Colour | blau | VISUELL | |
| Viscosity at 100 °C | mm²/s | 6,3 | DIN 51562-1 |
| Viscosity at 40 °C | mm²/s | 32,0 | DIN 51562-1 |
| Viscosity Index VI | 152 | DIN ISO 2909 | |
| Pourpoint | °C | -39 | DIN ISO 3016 |
| Flashpoint | °C | 227 | DIN EN ISO 2592 |
All indicated data are approximate values and are subject to the commercial fluctuations.
